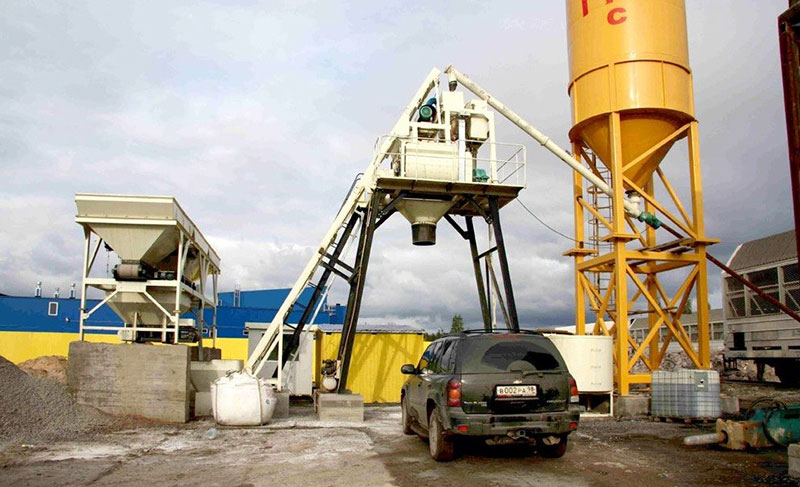

Immovable concrete mixing station Model HZS35
Features:
- This is the most basic concrete mixing and pumping plant with the main body as Concrete Mixer.
- Usually the Immovable concrete plant is suitable for large construction sites with a lower construction cost than Movable plant. In order to achieve a high efficiency of concrete mixing and pumping, a lifting bucket should be equipped. In order to accurately calculate the mixing materials a batching machine, a powder weigher and a water weigher are requested. In order to reduce the cement cost, a bulk loading cement silo and a screw conveyor are requested. With a high productivity, the mixed concrete can not be sent manually, hence a mixer truck and a pumping device are equipped. All the producing procedure will be controlled by a Operation room. That is how comes an Immovable Concrete Mixing and Pumping Plant.
- The immovable plant is generally not disassembled. If it must be disassembled for transferring to another construction site, the dissembled cost will be about USD3000 per time.
Technical Parameters
| Item |
Unit |
HZS35 |
| Theoretical productivity |
m3/h |
35 |
| Actual productivity |
m3/h |
30 |
| Mixer volume |
m3 |
0.75 |
| Storage bin quantity and volume |
m3 |
3 × 3 |
| Granular aggregate weighing range |
kg |
2000 |
| Powder weighing range |
kg |
400 |
| Water weighing range |
kg |
250 |
| Liquid additive weighing range |
kg |
40 |
| Discharging height |
m |
3.8 |
| Discharge direction |
Aggregate |
% |
±2 |
| Power |
±1 |
| Water |
| Additives |
| Note: The assembled cement silo and powder spiral conveyors are in optional choice which could be customized designed based on actual demands. |
Configuration list
| Item no. |
Name of item |
Main components |
Model and Description |
Unit |
Qty |
Remarks |
| 1 |
Concrete batching Machine PLD1200-III |
Storage bins |
Single bin Volume: 3m3 |
pc. |
3 |
Weighing accuracy: ±2% |
| Weighing hopper |
Max. Range: 2000kg |
pc. |
1 |
| Weighing sensor |
XYL-1 |
pc. |
3 |
| Wheel-shaped conveyor belt |
B500 |
pc. |
4 |
| 2 |
Main body of the plant |
Mixer |
JS750 Nominal volume: 0.75m3
Power capacity:30kW |
set |
1 |
Discharging height: 3.8m |
| Discharging cylinder |
LZE100 |
pc. |
2 |
| Main steel structure |
|
set |
1 |
| Lifting motor |
Power 7.5kW |
pc. |
1 |
| Lifting track |
|
set |
1 |
| Lifting hopper |
|
set |
1 |
| 3 |
Powder weighing system |
Powder weigher |
Max. range: 400kg |
set |
1 |
Weighing accuracy: ±1% |
| Weighing sensor |
XYL-2 |
pc. |
3 |
| Powder butterfly valve |
Φ250 |
pc. |
1 |
| Vibrating motor |
MVE60 / 3 |
pc. |
1 |
| 4 |
Water weighing and supplying system |
Water weigher |
Max. range: 250kg |
set |
1 |
Weighing accuracy: ±1% |
| Weighing sensor |
XYL-2 |
pc. |
3 |
| Discharging water pump |
Power: 1.1kW |
pc. |
1 |
| Water tank |
Tank volume: 2.5m3 |
set |
1 |
| Water supply pump |
Power: 3kW |
pc. |
1 |
| Supply piping and valves |
|
set |
1 |
| 5 |
Liquid additive weighing and supplying system |
Liquid additive weigher |
Max. range: 40kg |
set |
1 |
Weighing accuracy: ±1% |
| Weighing Sensors |
XYL-1 |
pc. |
1 |
| Discharging pump |
Stainless steel centrifugal pump: 1.1kW |
pc. |
1 |
| Liquid additive tank |
Tank volume 2.5m3 |
set |
1 |
| Supply pump |
Stainless steel centrifugal pump: 1.1kW |
pc. |
1 |
| Supply piping |
|
set |
1 |
| 6 |
Air system |
Air compressor |
Power 3kW |
pc. |
1 |
|
| Piping Accessories |
|
set |
1 |
| Air piping |
|
set |
1 |
| 7 |
Control system |
Control software |
HZS35 |
set |
1 |
|
| Main electrical components |
|
set |
1 |
| Operation table |
|
set |
1 |

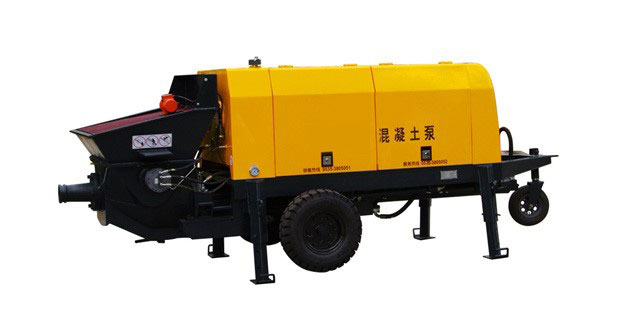

Electric Motor powered concrete pump Model HBTS50-13-55E
Technical Parameters
| Tems |
Units |
Parameters
HBTS50-13-55E |
| Whole performance of machine |
Max. theoretic concrete output (L./H.) |
m3/h |
46/22 |
| Max. concrete pumping pressure (H./L.) |
MPa |
13/6.2 |
| Max. Delivery distance (vertical/horizontal) |
m |
150/500 |
| Distribution valve |
|
S Valve |
| Concrete pumping cylinder diameter × stroke |
mm |
Φ180×1200 |
| Hopper capacity × feeding height |
mm |
500 × 1100 |
| Outlet diameter |
mm |
Φ133 |
| Inner diameter of delivering pipe |
mm |
Φ108 |
| Max. aggregate diameter |
mm |
Pebble: 40 ; broken stone: 35 |
| Lubrication system |
|
Fully automatic electric lubrication |
| High and low voltage conversion |
|
Yes |
| Remote control |
|
Wireless |
| Power system |
Electrical motor model |
|
HM2-250M-4 |
| Rated power |
kW |
55 |
| Rated speed |
rpm |
1480 |
| Hydraulic system |
Circuit type |
|
Open-type system |
| Pumping system pressure |
MPa |
31 |
| Mixing system pressure |
MPa |
12 |
| Capacity of oil tank |
L |
320 |
| Other parameters |
Dimensions: length × width × height |
mm |
4300 × 1670 × 1680 |
| Total weight |
kg |
3300 |
Main components of HBTS50-13-55E
- Main oil pump:
- Electric motor:
- Valve group:
- Press gauge:
- Hydraulic rubber pipe:
- Seal ring:
- China Sailite
- China Huali
- China,Taiwan Northman
- China Wuxi
- Italy Manuli
- USA Parker
- Air switch:
- Contactor:
- PLC Units:
- Intermediate relay:
- Proximity switch:
- Button:
- French Schneider Electric
- China Chint
- Japanese Omron
- Japanese Omron
- French Schneider Electric
- French Schneider Electric
Configuration list (The total length of Φ108 delivery pipe is 100m)
| Item No. |
Name |
Description |
Unit |
Quantity |
| 1 |
Hydraulic hose |
Φ108×4m |
piece |
1 |
| 2 |
Soft delivering hose |
Φ108×5m |
piece |
1 |
| 3 |
Steel pipe |
Φ108×3m |
piece |
27 |
| 4 |
Steel pipe |
Φ108×1.5m |
piece |
2 |
| 5 |
Reducing pipe |
Φ133-Φ108m |
piece |
1 |
| 6 |
Elbow pipe |
Φ108-90° |
piece |
4 |
| 7 |
Elbow pipe |
Φ108-45° |
piece |
2 |
| 8 |
Clamp |
S100 |
piece |
40 |
| 9 |
Clamp |
S125 (High pressure) |
piece |
2 |
| 10 |
Sealing ring |
|
set |
1 |
| 11 |
Piston |
Φ180 |
piece |
2 |
| 12 |
Proximity switch |
ZLJ-A18-8ANA-Q |
piece |
1 |
| 13 |
Remote control |
Wireless 220V |
piece |
1 |
| 14 |
Certificate |
|
set |
1 |
| 15 |
Tool box |
|
set |
1 |
| 16 |
Work clothes |
|
piece |
2 |
Feel free for any precise technical questions
