Everybody knows that there are hundreds of Generators and Alternators cohabitated in the market which could be manufactured as different quality of Gen-sets through a general combination of various kinds of components, this makes the buyers a big confusion in purchasing. To help our world-wide customers in machinery business line to make a wise choice, we make a careful research in the market and choose only the direct manufacturers whom are in reliable quality supply and enjoy a high reputation in the market, this is to guarantee our customers to stay away from Gen-set running problems and to get what they exactly pay for.
Introduction of WEICHAI Generating Sets
WEICHAI is the Top Brand in China which has a long history in producing advanced and various generating sets. Due to its strong capability in product renovation and quality product supply, it enjoys a high reputation in China domestic market and also well-known in the world.
WEICHAI Diesel Gen-set series of 226B, WD615/618, 6160, X170, and CW200 are from 15kW to 1250kW, which are alternative for land and marine use as prime power or standby power. All the Land diesel gen-set models could be supplied with or without AMF, ATS, Fuel tank, Weather canopy, Sound proof, trailer and truck station. All the Marine diesel gen-set models could be supplied in 3 different types including common type, automotive type and emergency automotive starting type.
BV, RS, CCS, ZY Certificates could be supplied for all the Gen-set models.
To match the supply of our Machinery Exportation, here we recommend only 226B series Diesel Land Gen-sets as below.

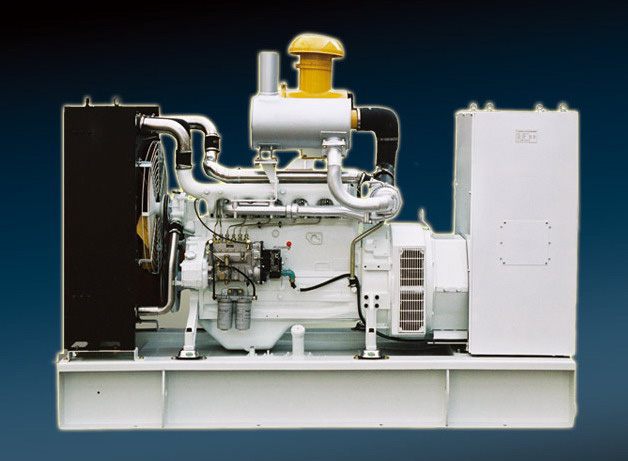

Weichai Deutz 226B Series Land Generating Sets
(18kw ~ 120kw)-
- Diesel Engine 226B series:
- Alternator:
- Control panel:
- Air filter:
- Optional components:
-
- Made by Joint Venture of Germany DEUTZ and China WEICHAI group Corp.
- Stamford (Sino-UK brand) or Marathon (Sino-American brand)
- Installed on common base by shock absorber.
- Will be delivered accompany with the generating sets
- Engine protection module, parallel equipment, common base oil tank, electric governor, automatic start, automatic transfer switch (ATS), remote-control equipment, closed frame type, rain-proof shell, and trailer type.
Model List
Technical Data
Operation Guide
- Hoisting: Please always keep the Gen-set hoisting steadily. Any side hoisting, pulling and tilting hoisting should be strictly forbidden.
- Installation: The Gen-set must be set on shock absorption pads with a leveling and horizontal base. It’s forbidden to place the generating set on its original packing base.
- Operation: Please always follow up the Operation and Maintenance Manual for the Gen-set operation, please read carefully the Manual before any machine operation.
- Sizes listed in the above pictures are the minimum size requirement, it could be enlarged if the room space is enough.
- Engine room floor should be hard, plain and anti-slip, with min. 20cm thickness concrete covering.
- Hoisting steel should be pre-installed in min. 3 meters heigth on top of the Gen-set for future maintenance use.
- A good ventilation is requested for the engine room.
- The Gen-set exhaust pipe should be in min. size 105mm for inner diameter and better to be in straight exhausting direction. In case the exhaust pipe must be bended due to the room limitation, max. 3 corners is acceptable with bended angle over 90 degree. The exhaust pipe should be installed with supporter or hanging bracket to guarantee the Gen-set stay away from any pressure from the exhaust pipe.
- Fire-extinguisher should be equipped in Engine Room.
Important Notice for Buyer
- Please always specify the name and the power capacity of the machine/equipment for Gen-set power capacity recommendation. Normally the Gen-set power capacity should be min. 3 times of the main machine equipment.
- Please always specify the model choice with optional components to get a precise offer.
- Please always let us know if you meet budget problem, through a Gen-set combination change the cost might be reduced based on reliable quality and service.
- For example: WEICHAI YZ series generator (100% China made) + XINGNUO alternator (100% China made) could be in 50% price lower than WEICHAI DEUTZ generator + STAMFORD alternator
Export Information
- All the Gen-sets are tested or debugged before leaving warehouse.
- All models are shipped with an Operation Guidance brochure.
- Warranty: One year or 1500 hours.
- All the Gen-sets could be wholesaled for container shipment or retailed in one or two sets to be delivered in a same shipment with your main machine/equipment supplied by our company.
- Payment: 60% by T/T down payment and balance against B/L copy issued by shipping line.
- Delivery: Within 30 days upon receipt of your down payment.
Feel free for any precise technical questions
